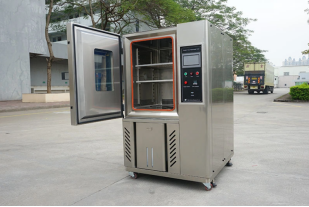

YH-1010 Constant temperature and humidity test box (high and low
temperature alternating temperature test box)
Chart:
Freature:
1,High texture appearance, the body adopts arc shape, the surface
is treated by fog surface stripes,and the use of a flat
non-reactive handle, easy to operate, safe and reliable.

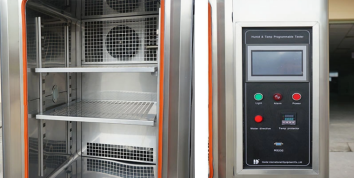

2,Rectangular multi-layer glass viewing window, can be used in the
experiment observation, window anti-perspiration electric heater
device to prevent water vapor condensation water droplets,and high
brightness Pl fluorescent lamps to keep the box lighting.
3,With test holes can be externally connected to test power
or,signal lines and up and down adjustable pallets.The double door
of the box door can effectively insulate the internal temperature
leakage.
4,With an external water supply system, easy to reload and wet
bucket water supply, and automatic recycling.
5,The compressor circulatory system uses the French "Taikang" card,
more effective to remove the lubricating oil between the condensing
tube and the capillary,and the entire series uses the United States
Lianxing environmental refrigerant(R404)
6,The controller uses the original imported 7-inch touch screen,
can display the measurement and setting value at the same
time,temperature and humidity experimental conditions programmable
operation, experimental data support USB direct export, the maximum
recording time of 3 months.
7,The built-in mobile pulley will be rotated and placed and have a
strong positioning screw fixed position.
Parameter:
| Model | TH-80(A~F) | TH-150(A~F) | TH-225(A~ F) | TH-408(A ~F) | TH-800(A~F) | TH-1000(A~F) | | Internal size W*H*D(cm) | 40×50×40 | 50×60×50 | 60×75×50 | 60×85×80 | 100×100×80 | 100×100×100 | | External size W*H*D(cm) | 120×165×115 | 130×170×125 | 140×185×130 | 165×195×155 | 185×200×175 | 190×210×185 | | Temperature range | Low temperature: A:25℃B:0℃, C:-20 ℃,D: to 40 ℃,E:-60 ℃, F: high temperature-70 C): 100-60 ℃, 150 ℃) | | Humidity range | 20%~98%R.H.( 10%~98%R.H) ; (5%~98%R.H For special selection
conditions | | Temperature and humidity resolutionDegree/ Distribution Precision | 0.1℃ 0.1%R.H./±2.0P ±3.0%R.H. 0.1 ℃0.1%R.H/±2.0P ± 3.0% R.H. | | Temperature and humidity control accuracy | ±0.5℃ ±2.5%R.H. | | Heating / cooling time | Heating about 4.0℃/minute ; Cooling about 1.0℃/ minute | | lnternal and external materials | Linear: 1.0 ℃-15 ℃/min adjustable; nonlinear: 1.0 ℃-20 ℃/min adjustable | | lnsulation material | High temperature resistant and high density vinyl chloride acetate
foam insulator | | cooling system | Air-cooled/single-stage compressor (-40 C) , double-stage
compressor(-45 ℃-70) | | Safety protection device | Overoad protection for Crcuit breaker, compressor,high and low
pressure prolection for rerigerant, over humidity and over
temperature protection,Fuse fault warming system water shortage
alarm protection | | Accessories | Operation Hole built-in glass door(buy),recorder (buy)50mm test
hole,PL box lamp,partion, dry and wet ball gauze,casters,
horizontal foot frame | | Power supply | AC220V50/60Hz&1 #AC380V50/60Hz 3 | | weight(approx.) | 150KG | 180KG | 250KG | 350KG | 500KG | 520KG |
|
