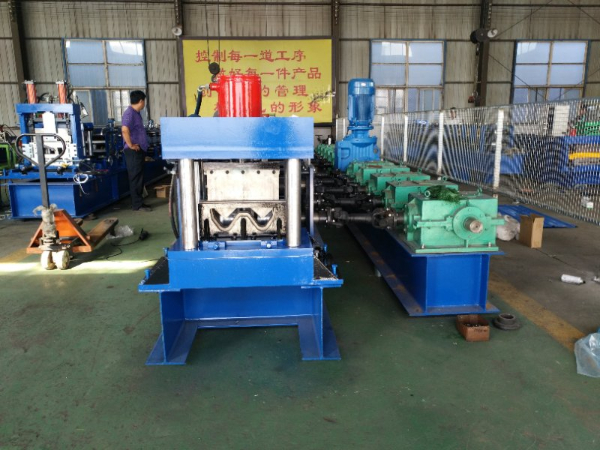

    Red Crash Barrier Roll Forming Machine 15m/min 3T Manual Feeding

    Red Crash Barrier Roll Forming Machine 15m/min 3T Manual Feeding


    Crash barrier or Guardrail is a barrier on a road designed to prevent vehicles from leaving the roadway to improve road safety. Fully Automatic Guard Rail Roll Forming Line can produce 2 and 3 waves guardrail as customer required. Crash Barrier Roll Forming Machines have been designed for producing w shaped guardrails with 2 wave or 3 waves placed on both sides of highway or expressway.

    Equipment configuration
    Manual Feeding device (3 T capacity), transmission, flattening device, before-punching device
    (2 sets), main machine and roller (including guide table), cutting (after roll forming) device, hydraulic system, electric control system, run out table, etc.
    Raw material
    Material specColored steel sheet, galvanized steel sheet, aluminum sheet
    Thickness of coil sheet2.0-3.0mm
    Machine details
    Roller materialHigh grade no. 45 forged steel with 0.05mm hard chrome plating
    Shaft materialHigh grade no. 45 carbon wrought steel
    Cutting bladeCr12 mould steel with quenched treatment
    Diameter of shaft90mm or as your requirement
    Main frame350 h steel
    Hydraulic pressure10-12mpa
    Controlling systemFamous plc computer control
    Material of cutting tableCr 12 mould steel with quenched treatment
    Hydraulic oil40# hydraulic oil

    5T hydraulic decoiler:

    Steel coil width: from 1000 mm to 1250 mm;
    Internal diameter of coil: variable, from 480 mm to 530 mm
    Maximal out diameter:2000mm
    Maximum coil weight: 5000 Kgs;
    Coil placement in the coil holder: hydraulic hoist;
    Pulling of steel from the coil to the pulling mechanism for the start: manual;
    Suitable of the pulling mechanism for all required thicknesses: included;
    Device preventing unwinding of the coil from the coil holder: included;
    Uncoiled metal compensator: included, assures even feeding at all production speeds;
    Oil cylinder dia:120mm
    Working speed: 0-15m/min adjustable
    Main motor power: 5.5KW AC motor
    Hydraulic power: 4kw
