    8m/min 6T Rolling Shutter Manufacturing Machine Hydraulic Cutting

    Ask Lasest Price
    Brand Name : Gracias
    Model Number : Rolling shutter door
    Certification : CE,ISO
    Price : As discussion
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 50sets per month
    Delivery Time : 20-40work days
    • Product Details
    • Company Profile

    8m/min 6T Rolling Shutter Manufacturing Machine Hydraulic Cutting

    8m/min 6T Rolling Shutter Manufacturing Machine Hydraulic Cutting

    Product Description

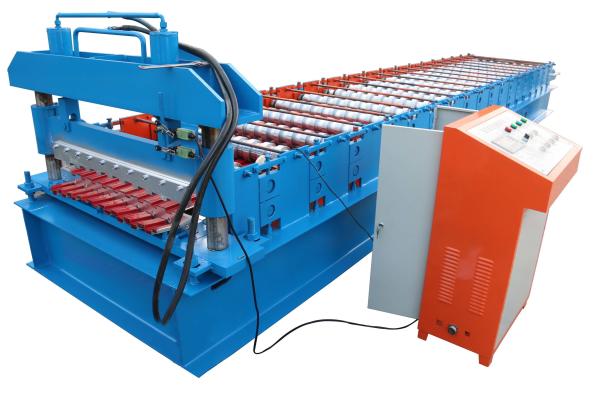

    Saudi Arabia style rolling shutter door roll forming machine,with low noise than normal

    rolling shutter door machine.The completer door roll forming machine including decoiler,

    main forming machine,control box and run out tables .

    Features:

    • Lightweight, high impact strength and simple to use.
    • Deep corrugations provide bold aesthetic shadow effects.
    • The strength of design allows longer spanning or greater allowable loads.
    • Various corrugation profiles, including standard, mini, tile effect, box profile, etc.
    • Offer Custom-manufactured service to satisfy your special needs.
    • Offer roof materials in galvanised steel, prepainted galvanised steel, also available in galvalume steel and prepainted galvalume steel.
    • Offer roof accessories to help you install roof or wall panel, such as roof fasteners, roof panel machine and roof cutting tool.

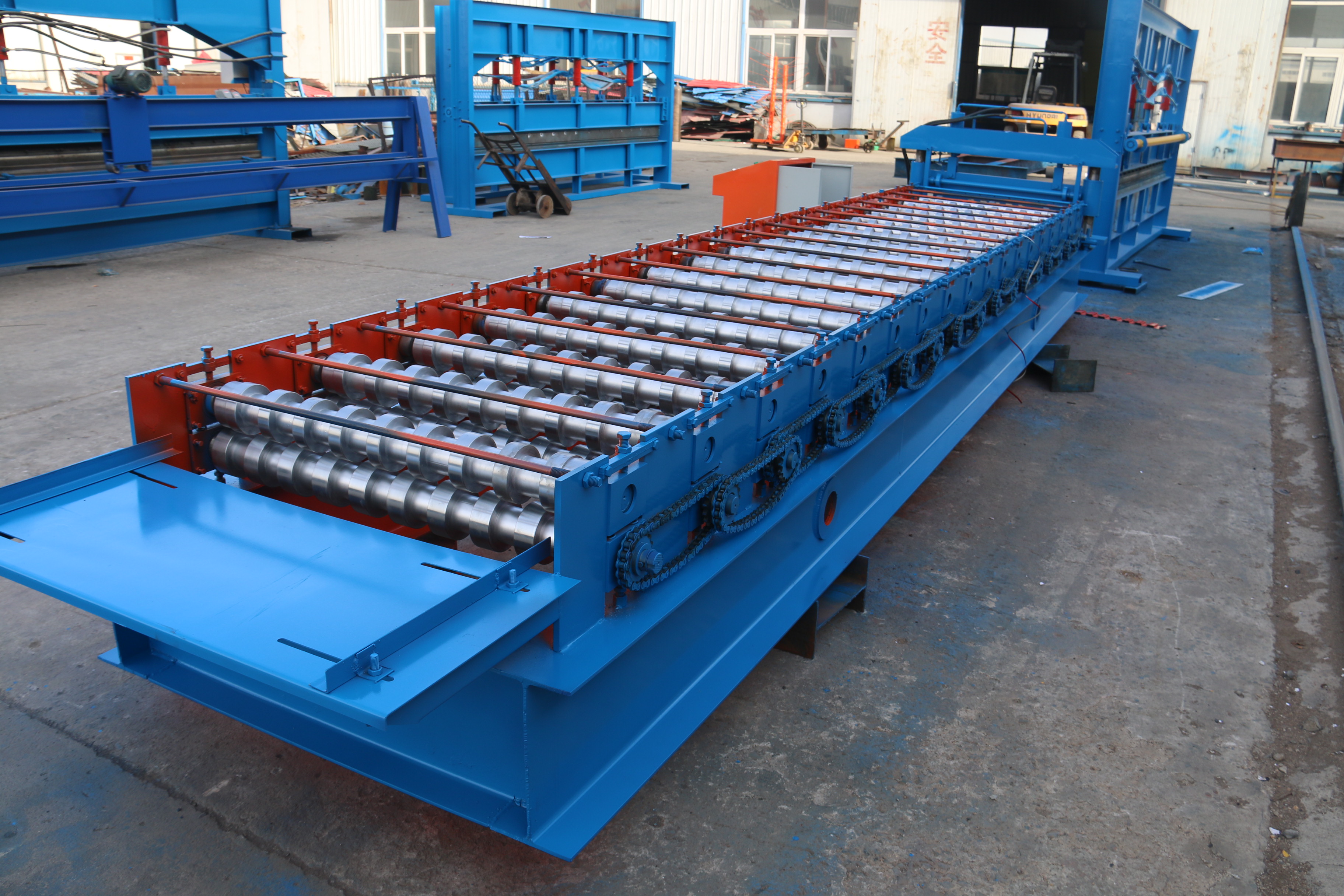

    Main forming machine


    Raw material
    Processing materialColor steel coil, Galvanized coil, Aluminized zinc coil or as your customized
    Processing thickness (mm)0.3-1.0mm or as your customized
    Material of rollersHigh grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm
    Material of shafts45# steel
    Diameter of shafts70mm or as your customized
    Forming speed8-12 m/min or as your customized
    Under frame350 H-beam
    Sidewall16mm
    Connect bar25mm, zinc plated
    Forming steps22 or as your customized
    Control systemDelta PLC and Inverter
    Suitable power380V, 50 Hz, 3 phase or according to your need
    Drive modeChain and sprocket, chain size 1 inch
    Main motor3-5.5kw
    Hydraulic pump station3-5.5kw
    Cutting modelHydraulic profile cutting
    Dimension of the machine7.5m-11m×1.5mm×1.2m
    Weight of the machine3.5 ton -6 ton
