Guide Rail Shutter Door Roll Forming Machine 15m/min 5.5KW

1. The chart of process flow:

Decoiling--active feeding---forming---measuring lengh---punching---cutting---product to stand

2. Main equipment:

Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.

3. Technical parameters

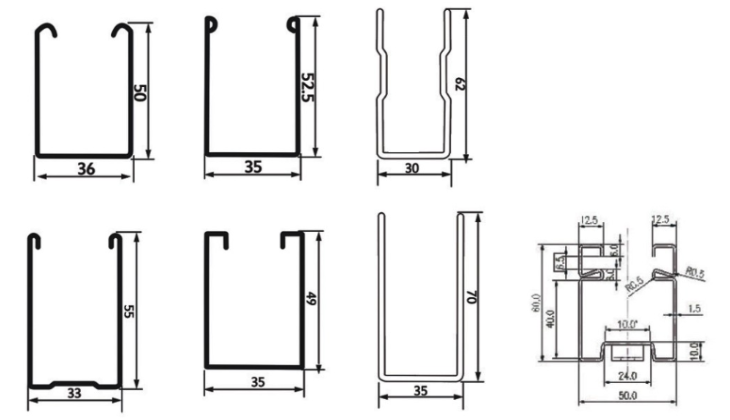

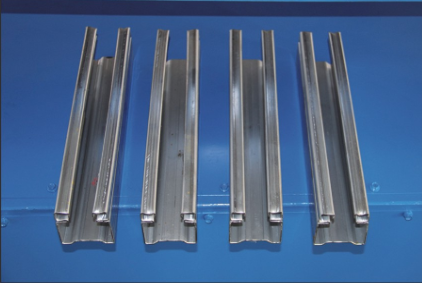

1) Profile

thickness:0.3--0.8mm or 1--2mm

2) inner tight decoiler

3) main forming machine

4) cutting system

A. hydraulic cutter

B. Blade and mould material:Cr12 steel with quenched treated 60-62°

C. Cutting system advanced hydraulic drive,after automatic cutting after forming

4. Spare Parts

1) Easy damaged parts: conk 2 pcs, fuse-link 4 pcs

2) Rubber mat 1 pcs;

3) Bolt spanner 1 pcs
