Roof Ridge Cap Roll Forming Machine 15m/min 18 Stations

    Buy cheap Roof Ridge Cap Roll Forming Machine 15m/min 18 Stations from wholesalers

    Buy cheap Roof Ridge Cap Roll Forming Machine 15m/min 18 Stations from wholesalers
    • Buy cheap Roof Ridge Cap Roll Forming Machine 15m/min 18 Stations from wholesalers
    • Buy cheap Roof Ridge Cap Roll Forming Machine 15m/min 18 Stations from wholesalers
    • Buy cheap Roof Ridge Cap Roll Forming Machine 15m/min 18 Stations from wholesalers

    Roof Ridge Cap Roll Forming Machine 15m/min 18 Stations

    Ask Lasest Price
    Brand Name : Gracias
    Model Number : Ridge cap
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 30sets per month
    Delivery Time : 45 work days
    • Product Details
    • Company Profile

    Roof Ridge Cap Roll Forming Machine 15m/min 18 Stations

    Technical parameters of fair ridge cap making machine

    Model numbermetal roof ridge cap roll forming machine
    Rolled material

    0.3-1.5mm thickness, aluminum sheet, galvanized sheet, colored steel sheet and various

    steel plates

    Effective widthas customer's require
    Feeding widthas customer's require
    Forming steps9-18 stations
    Roller45# forged steel, hard chrome plating within 0.05mm
    Diameter of shaft70mm
    Main motor power4 kw
    Pump power3 kw
    Sprocket chain1 inch
    Drive typeby chain
    Cutting BladeCr12, heat treatment 60-62°C
    Frequency Converter

    It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).

    component

    1 set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet,1 set of hydraulic System,1 set of cutting mechanism,1 set of counter,1 set of output table


    Roof Ridge Cap Roll Forming Machine 15m/min 18 Stations

    Roof Ridge Cap Roll Forming Machine 15m/min 18 Stations

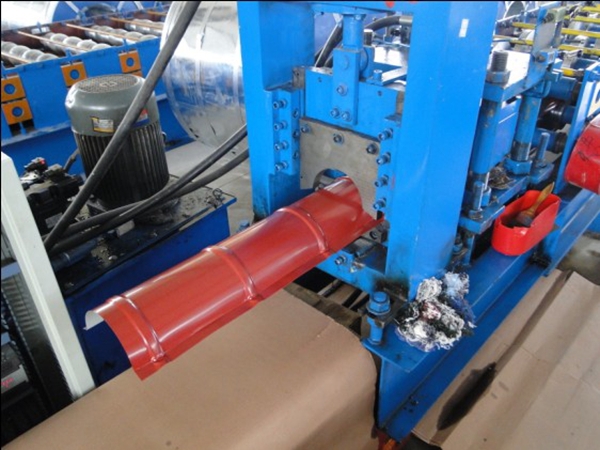

    Sheet Photo

    Roof Ridge Cap Roll Forming Machine 15m/min 18 StationsRoof Ridge Cap Roll Forming Machine 15m/min 18 Stations
