Brand Name : | Gracias |
Model Number : | Ridge cap |
Certification : | CE,ISO |
Price : | As discussion |
Payment Terms : | T/T, L/C, Western Union |
Supply Ability : | 50sets per month |
Delivery Time : | 30-50 work days |
Blue Roofing Sheet Manufacturing Machine 12 Stations 15m/min
Production Flow
Manual decoiler→Feeding material into machine→Roll forming machine→Measure length
→Hydraulic cutting→Finished Products
Product Description
decoiler | Manual type/ Hydraulic type |
main roll forming machines | Steps: 12 stations Roller Material: 45# steel Voltage: 380V/50Hz. Line speed: 12-15 m/min |
computer control cabinet | PLC TOUCH OR TEST |
hydraulic System | 5.5kw |
cutting mechanism | mould cutting |
counter | One counter gauges length, pulses, and decides length |
of output table | It used to load the forming plate |
Machine Components
No | Name | Quantity | Remarks | |
1 | Decoiler | 1set | Up to customer | |
2 | Main machine | Pre-cutting device | 1set | Up to customer |
Feeding device | 1set | |||
Roll forming system | 1set | |||
Post cutting device | 1set | |||
Hydraulic system | 1set | |||
3 | Electric control system | 1set | ||
4 | Supporter/Automatic Stacker | 1set | Up to customer |

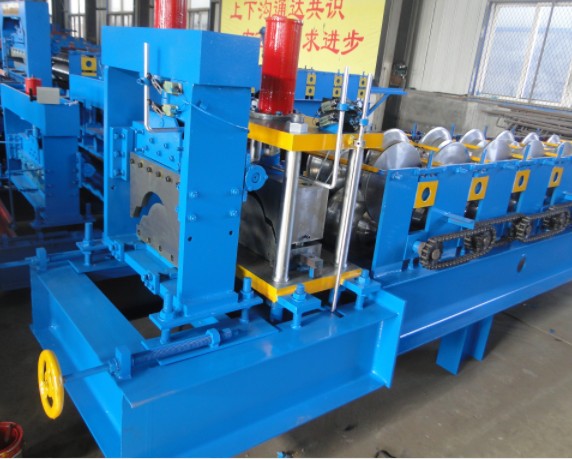

Detail part photo
![]() |
