Brand Name : | Gracias |
Model Number : | Floor deck |
Certification : | CE,ISO |
Price : | Negotiable |
Payment Terms : | T/T, L/C, Western Union |
Supply Ability : | 40sets per month |
Delivery Time : | 45 work days |

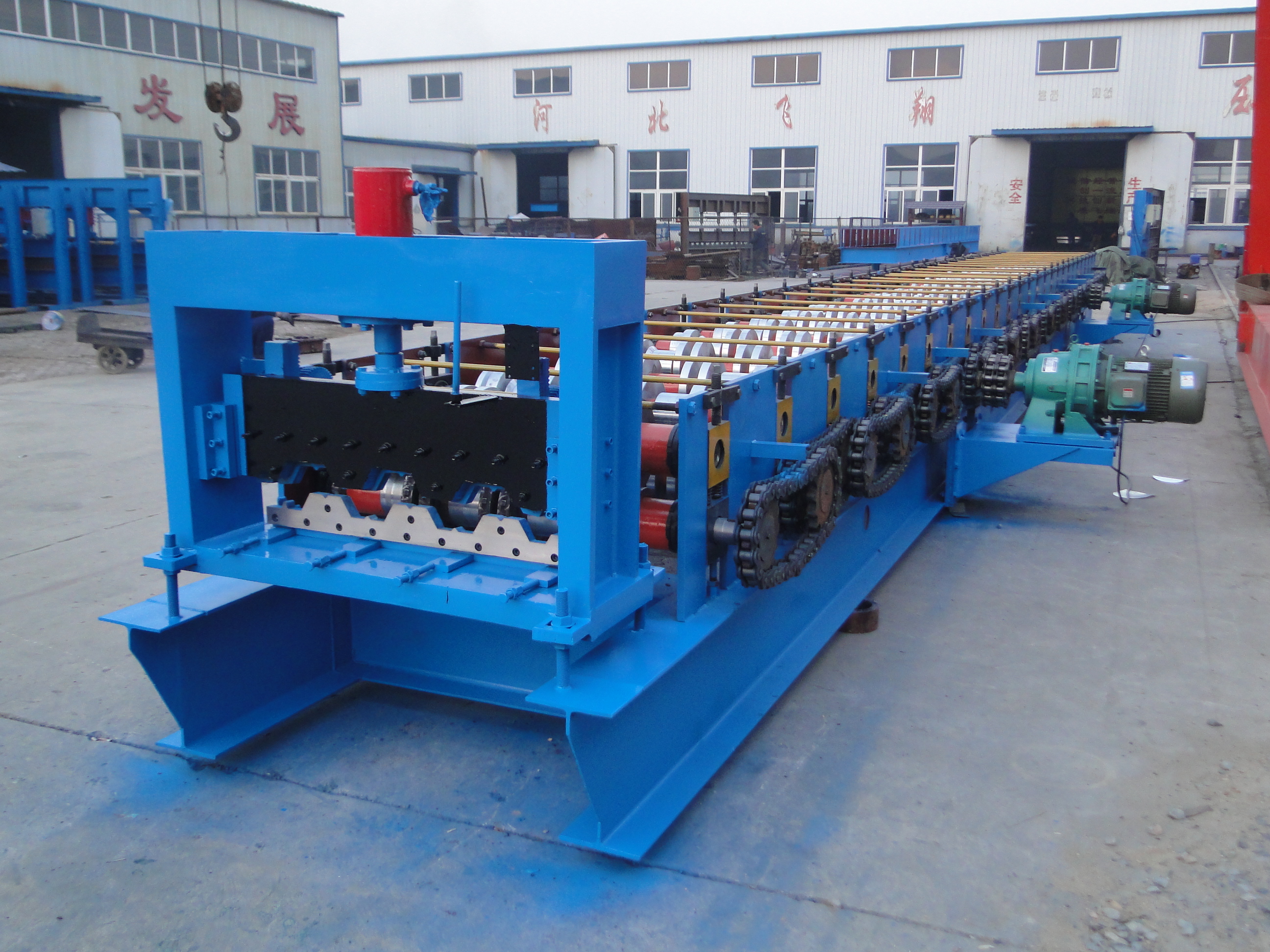

Floor Sheet Metal Roll Forming Machines 8m/min 11 Steps
There are different types of floor deck sheet, the three waves and
four waves sheets are the model type, normally the sheet along with
the embossing pattern as well. We can show you the product dimension drawing here, and the
embossing pattern
Product Description
NO. | Item | Parameter |
1 | material | color steel/galvanized steel/aluminium(if G550 please check with us) |
2 | feeding width | as customers' request |
3 | material thinkness | as customers' request |
4 | machine size | 12*2.2*1.8m |
5 | machine weight | 9T |
6 | voltage requirement | 380V60Hz3P |
7 | working speed | 8-10m/min |
8 | machine base | 350# steel welded |
9 | Frame | Steel plate screwed |
10 | forming steps | 11steps |
11 | rollers | 45# steel |
12 | shaft | 45#steel,diameter 90mm |
13 | transmission | 1inch chain or gear |
14 | PLC | Delta |
15 | motor | 18.5kw |
16 | pump | 4kw |
17 | cutter | Cr12 |
18 | after-sale service | 24h*7days*1year’s on line and engineer service overseas |
19 | warranty | 1year |
![]() |
