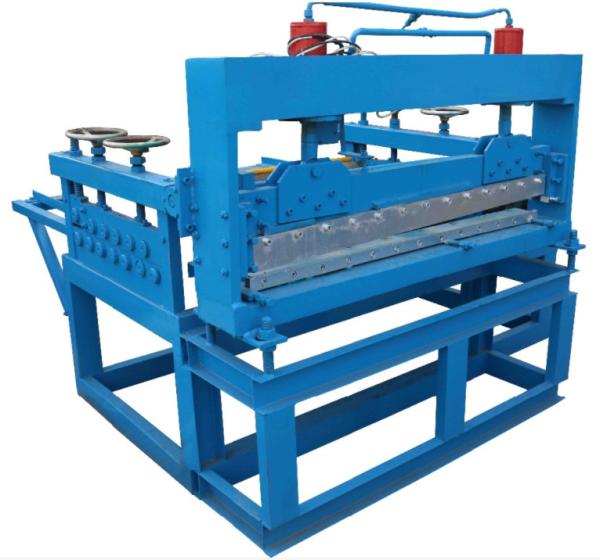

    Hydraulic Sheet Metal Shearing Machine 20m/min Coil Plate Leveling

    Ask Lasest Price
    Brand Name : Gracias
    Model Number : shearing machine
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100sets per month
    Delivery Time : 20-30work days
    • Product Details
    • Company Profile

    Hydraulic Sheet Metal Shearing Machine 20m/min Coil Plate Leveling

    Hydraulic Sheet Metal Shearing Machine 20m/min Coil Plate Leveling


    Introduce of the machine

    This equipment can set the relevant parameters according the customer's requirements for the automatic cutting system, and it can shear arbitrary length of coil plate accurately. The advantages are high shearing speed and accuracy, save time and effort,and making the automation of coil plate leveling shearing.


    1. Material

    1) Width :2000mm

    2) Thickness:0.3-3.0mm

    2. Including equipment

    1) 5T Hydraulic decoiler :1 set

    2) Flatten and cutting machine :1 set

    3) Auto conveyor table:1 set

    4) Simple stand :1 set

    3. Process5T hydraulic decoiler -flatten and cutting machine-auto conveyor table
    4. Hydraulic decoiler

    1) Inner diameter :450-550mm

    2) Out diameter 1200mm

    3) Width 2000mm

    4) Weight :5T

    5) Motor :5.5kw

    5. Flatten and cutting

    1) Stations:Up6 bottom 7, diameter :90mm

    2) Stations: Up 3 bottom 5,diameter:80mm

    3) Material :40Cr

    4) Motor:7.5KW

    5) Speed:15-20m/min

    6. Auto conveyor table1 set

    Hydraulic Sheet Metal Shearing Machine 20m/min Coil Plate Leveling
