    4.5T Storage Rack Roll Forming Machine 5.5KW For Aluminium Plate

    Ask Lasest Price
    Brand Name : Gracias
    Model Number : Storage rack
    Certification : CE,ISO
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 35sets per month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    4.5T Storage Rack Roll Forming Machine 5.5KW For Aluminium Plate

    4.5T Storage Rack Roll Forming Machine For Aluminium Plate

    Decoiler ---Punching ---Forming --Cutting

    NameSupermarket shelf roll forming machine
    Processing materialgalvanized sheet, or aluminium plate
    Material thickness0.8-1.5 mm
    Material hardness550 mpa---350 mpa
    Material width200mm(according to the profile)
    Formed width101.6mm (according to the profile)
    Forming speed12m/min
    Working speed8m/min
    Voltage380V 50HZ 3Phase
    Roller fixerGuide column
    Frame400 H steel
    Drive modechain
    Material of rollers45# steel, surface hard chromium plating.
    Material of shafts45# steel with tempering
    Diameter of shaftsφ70mm
    Number of rollers20 rollers
    Main power5.5kw
    Hydraulic power3kw

    4.5T Storage Rack Roll Forming Machine 5.5KW For Aluminium Plate4.5T Storage Rack Roll Forming Machine 5.5KW For Aluminium Plate

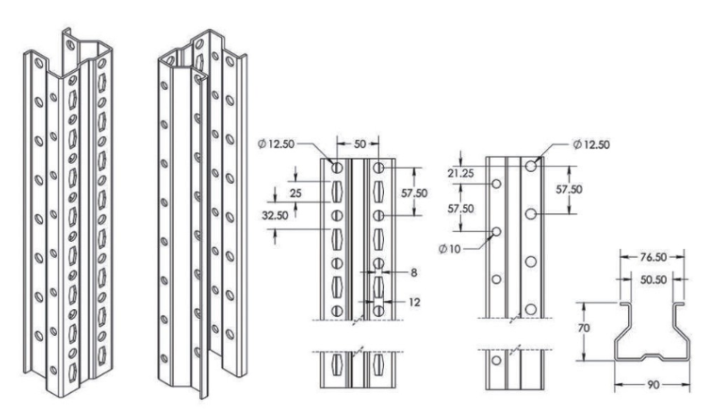

    Profile

    4.5T Storage Rack Roll Forming Machine 5.5KW For Aluminium Plate
