    Rain Water Downspout Pipe Roll Forming Machine 15KW 8m/min

    Ask Lasest Price
    Brand Name : Gracias
    Model Number : Downspout pipe
    Certification : CE
    Price : As discussion
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 15sets per month
    Delivery Time : 30-50 work days
    • Product Details
    • Company Profile

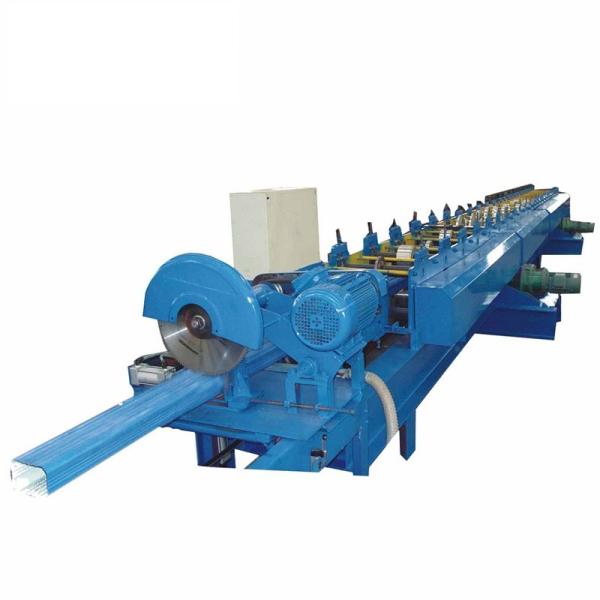

    Rain Water Downspout Pipe Roll Forming Machine 15KW 8m/min

    Rain Water Downspout Pipe Roll Forming Machine 8m/min

    Down pipe machine or Downspout forming machine make precise and well

    sealed roof drain pipe, leader is a pipe for carrying rainwater from a rain gutter.

    Advantage of metal down pipe;

    galvanized steel guttering resists thermal expansion and contraction, which

    means that it remains unaffected from sudden fluctuations in temperature.

    Steel has an excellent lifetime value, as it can be recycled.

    Rolled materialaluminum sheet, galvanized sheet, colored steel sheet and various steel plates
    thickness0.3-0.8mm
    Feeding width312.5mm
    speed8-12m/min
    Forming steps14 stations
    Roller45# forged steel, hard chrome plating within 0.05mm
    Diameter of shaft80mm
    Main motor power15 kw
    Pump power5.5 kw
    Drive typeby chains
    Cutting BladeCr12, heat treatment 60-62°C
    Frequency ConverterIt has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).
    component1 set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet,1 set of hydraulic System,1 set of cutting mechanism,1 set of counter,1 set of output table
    Size of the machine9.5m*1.2m*1.25m
    Weight of the machine6.5Tons

    Rain Water Downspout Pipe Roll Forming Machine 15KW 8m/min
