CE Downpipe Roll Forming Machine 50m/min High Frequency Welded

Introduction of the component:

Uncoiler

Briefing: Rotary type to change coils easily with a pneumatic brake

Parameters:

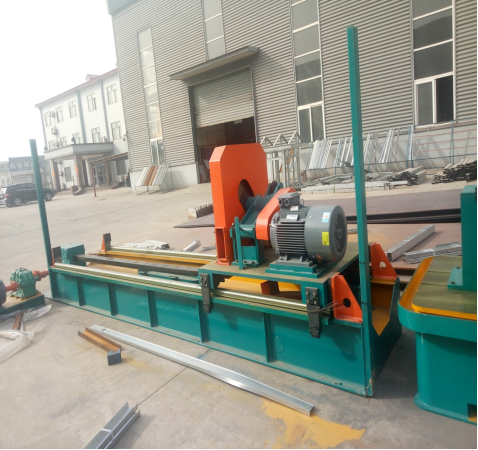

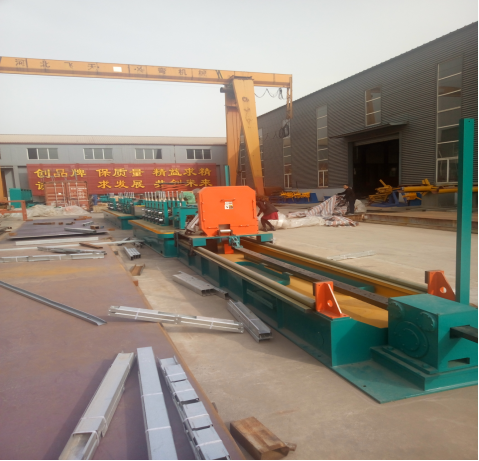

Computer-controlled flying saw

Forming Machine

Process flow:

Double-head uncoiler---Coil cutting and welding together----Accumulator---Flatting---Roundpipe forming

---cooling---Square pipe forming----sizing---fly saw cutting---run out table

Main Drive

A,the main motor Z4-225-11,110KW DC motor Z4-225-11,110kw

B,speed reducer model ZLY200,the ratio is16:1 ZLY200 16:1

C,drag device EURO DC control device

Butt welding machine

A,width:<400mm

B,thicknesss:<3.0mm

Accumulator

A,material:made of angle and channel iron

B,feeding speed: above 150m/min

C,collecting capacity:< 2000kg

Width Adjustment

Range:94-290mm

Accumulating Roller

A,Material:GCr15

B,Feeding rollers:150mm,2 pcs

C,Motor:5.5KW,6 Classes,1 set

Sizing parts

A,vertical shaft: 6 steps

B,the diameter of the shaft:60mm

C,the material of the shaft:40Gr

D,the horizontal shaft:6 steps

E,the diameter of the shaft:40mm

F,the material of the rollers:Gr12

G,the usage: make the round pipe in strictly round, form the square pipe and make the square in strictly square.

H,the horizontal stand:forge steel

I,Turk’s head:use for flatting

J,the speed:30-90m/min.

K,two sets molds: one for 15*15mm ,the other is for 45*45mm.

4.10 Run out table

Automatic rail type run out table

4.11High-frequency

A,Model:GP150-0.4

B,input power:3P,380V,50HZ

C,output power:150KW

D,control mode of output power:regulated by microprocessor

E,output frequency:350-420KHZ
