3.5T Round Pipe Roll Forming Machine 6m/min 18 Stands

Technical Parameter :

Main equipment:

inner tight decoiler

A. coil inner diameter:450mm--700mm

B. max width of coiling:1250mm

C. max weight of loading:5000kg

main forming machine

A. Shaft material:45# steel,bearing steel outer diameter 85mm

B. Main motor power:5.5kw

C. Forming speed:8--10m/min

D. Voltage:380v,50hz

E. Roller station:15

cutting system

A. hydraulic cutter

B. Blade and mould material:Cr12 steel with quenched treated 60-62°

C. Cutting system advanced hydraulic drive,after automatic cutting after forming.no

control system

A. PLC: taida form Taiwan

B. Coder:from south korea

hydraulic system

A. advanced hydraulic system from taiwan

B. Power:3kw

Spare Parts:

1) Easy damaged parts: conk 2 pcs, fuse-link 4 pcs

2) Rubber mat 1 pcs;

3) Bolt spanner 1 pcs

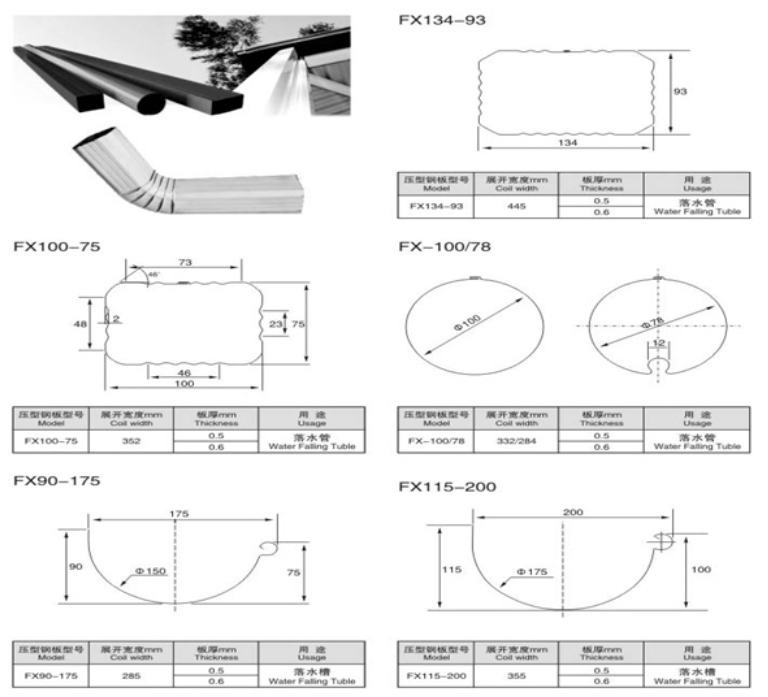

Final products and drawing :

The company's main products are: Steel door Embossing machine, Roof sheet roll forming machine, Glazed tile roll forming machines, Stud & track roll forming machine, Highway guardrail roll forming machine, Purlin roll forming machine,Roller shutter door roll forming machine, Sandwich panel roll forming machine,Light steel villa roll forming machine, Rotary punching machine, Cable tray roll forming machine, and other cold roll forming machine. The company adheres to the service tenet of "quality first, credit first",  the concept of "quality is their food for enterprise ". We will provide customers with high quality products and after-sales service.
