5T Door Frame Roll Forming Machine 25m/min 15 Roller Stations

1. The chart of process flow:

Decoiling--active feeding---forming---measuring lengh---cutting---product to stand

2. Main equipment:

Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.

3. Technical parameters

1) inner tight decoiler

2) main forming machine

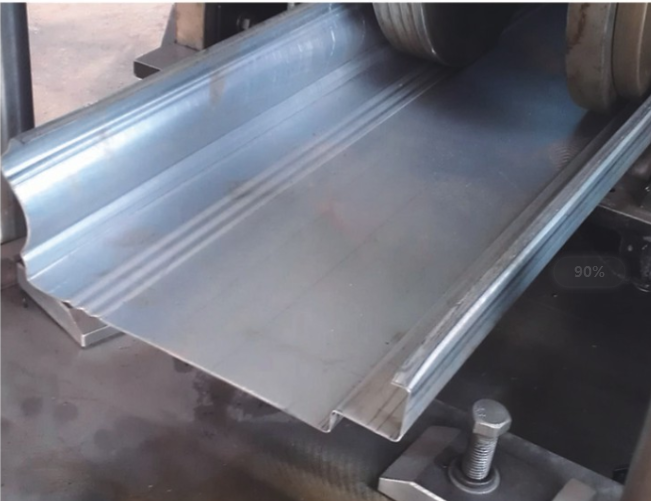

Profile

thickness:0.3--1.5mm

4) cutting system

A. hydraulic cutter

B. Blade and mould material:Cr12 steel with quenched treated 60-62°

C. Cutting system advanced hydraulic drive,after automatic cutting after forming.no

5) control system

A. PLC: taida form Taiwan

B. Coder:from south korea

6) hydraulic system

A. advanced hydraulic system from taiwan

B. Power:3kw
