T Bar Keel Roll Forming Machine 8m/min 15 Roller Station

1. The chart of process flow:

Decoiling--active feeding---forming---measuring length---punching machine---cutting---product to stand

2. Main equipment:

Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.

3. Technical parameters

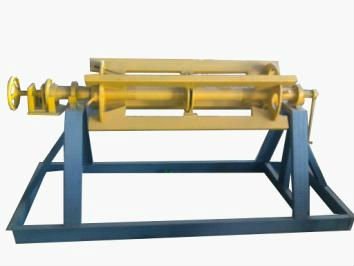

1) inner tight decoiler

2) main forming machine

3) cutting system

A. hydraulic cutter

B. Blade and mould material: Cr12 steel with quenched treated 60-62°

C. Cutting system advanced hydraulic drive,after automatic cutting after forming

4) hydraulic system

A. advanced hydraulic system from taiwan

B. Power:3kw

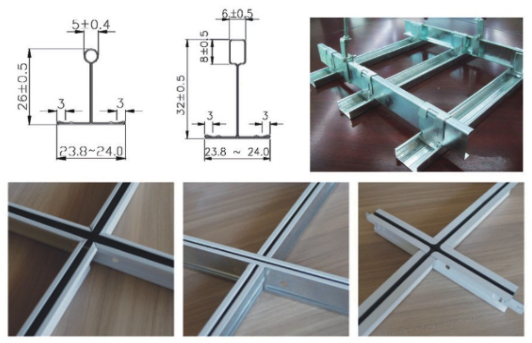

Profile :

The company's main products are: Steel door Embossing machine, Roof sheet roll forming machine, Glazed tile roll forming machines, Stud & track roll forming machine, Highway guardrail roll forming machine, Purlin roll forming machine,Roller shutter door roll forming machine, Sandwich panel roll forming machine,Light steel villa roll forming machine, Rotary punching machine, Cable tray roll forming machine, and other cold roll forming machine. The company adheres to the service tenet of "quality first, credit first",  the concept of "quality is their food for enterprise ". We will provide customers with high quality products and after-sales service.
