CE 860 Metal Roof Roll Forming Machine Hydraulic Profile Cutting

Product Categories

WENZHOU YIHENG MACHINERY CO.,LTD

Contact Now

Add to Cart

Features:

Lightweight, high impact strength and simple to use.
Deep corrugations provide bold aesthetic shadow effects.

The strength of design allows longer spanning or greater allowable loads.

Various corrugation profiles, including standard, mini, tile effect, box profile, etc.

Offer Custom-manufactured service to satisfy your special needs.

Offer roof materials in galvanised steel, prepainted galvanised steel, also available in galvalume

steel and prepainted galvalume steel.

Offer roof accessories to help you install roof or wall panel, such as roof fasteners, roof panel

machine and roof cutting tool.

Raw material
Processing material	Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized
Processing thickness (mm)	0.3-1.0mm or as your customized
Material of rollers	High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm
Material of shafts	45# steel
Diameter of shafts	70mm or as your customized
Forming speed	8-12 m/min or as your customized
Under frame	350 H-beam
Sidewall	16mm
Connect bar	25mm, zinc plated
Forming steps	10-18 or as your customized
Control system	Delta PLC and Inverter
Suitable power	380V, 50 Hz, 3 phase or according to your need
Drive mode	Chain and sprocket, chain size 1 inch
Main motor	3-5.5kw
Hydraulic pump station	3-5.5kw
Cutting model	Hydraulic profile cutting
Dimension of the machine	7.5m-11m×1.5mm×1.2m
Weight of the machine	3.5 ton -6 ton

Technical specifications

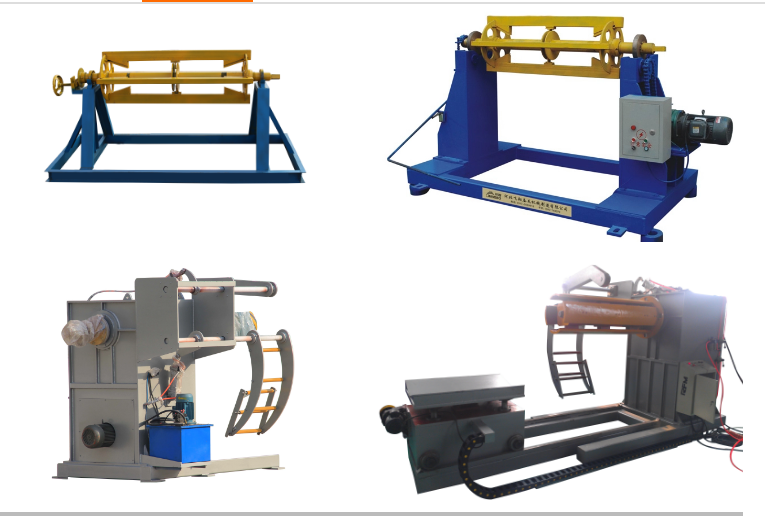

1. automatic inner tight decoiler

a. coil inner diameter 450mm-550mm

b. maximum width of coiling 1250mm

c. maximum weight of loading 5000kg CE 860 Metal Roof Roll Forming Machine Hydraulic Profile Cutting

CE 860 Metal Roof Roll Forming Machine Hydraulic Profile Cutting

Control system

Operate language English ,touch screen,Delta frequency and PLC CE 860 Metal Roof Roll Forming Machine Hydraulic Profile Cutting
