    750 Metal Roofing Sheet Making Machine Cr12 For Roof Tile Panel

    Ask Lasest Price
    Brand Name : Gracias
    Model Number : 750 steel forming machine
    Certification : ISO,CE
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 20sets per month
    Delivery Time : 25-50 work days
    • Product Details
    • Company Profile

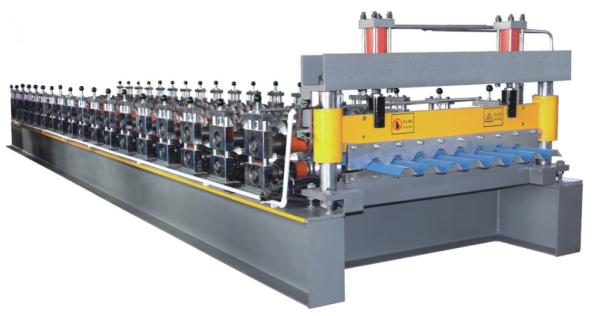

    750 Metal Roofing Sheet Making Machine Cr12 For Roof Tile Panel

    750 Metal Roofing Sheet Making Machine 750mm sheet roll forming machine

    1. Material and Profile :

    TypeGI,PPGITHICKNESS O.6-2.0MM
    Covered Width600mmmargin of error ±2mm
    Wave Height50mmmargin of error ±1mm
    Pitch Width200mmmargin of error ±1mm

    2. Components and working process :

    Decoiler1setManual or Full-Automatic,5-15T
    Main Forming Device1setWith motor power 15kw,column or middle plate style
    Control System1set5.7inch touch screen ,delta plc
    Cutting Device1setSKD11 Cutting blade with 5.5kw hydraulic pump
    Output Table1pcsas request

    750 Metal Roofing Sheet Making Machine Cr12 For Roof Tile Panel

    3. Steel Tile Forming Machine/Roof Tile Forming Machine

    No.Main Parameter of Roll Forming Machine
    1MaterialPPGI
    2Width of plate1250mm
    3Thickness of plate0.5-1.0mm
    4Rollers No.15rows
    5OD of roller80mm
    6Power5.5KW
    7Productivity8m/min
    8Material of cutting bladeCr12
    9Weight4.3T
    10Voltage380V 50Hz 3phases
    11Control SystemPLC Control
    12Machine Size8.2X1.45X1.5M

    750 Metal Roofing Sheet Making Machine Cr12 For Roof Tile Panel
