Highway Guardrail Roll Forming Machine

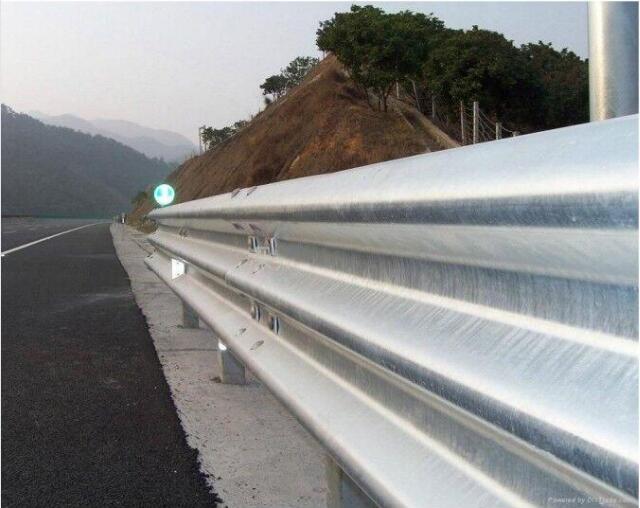

The highway guardrail is the main form of the semi-steel guardrail and

is a continuous structure supported by the main column with corrugated

steel guardrails.The collision of the vehicle, due to the collision resistance

and energy absorption effect of the corrugated steel guardrail board, is not

easy to be damaged again, and has good protection for personnel, vehicles

and passengers.

Technical parameters:

Dimension (L*W*H):4800mm*750mm*900mm
Machine weight: about 3T
Main motor power:5.5Kw(Delta inverter)
Forming step: 11steps
Forming speed:0-50m/min
Material of roller shafts:45# steel
Diameter of Shaft∶Φ40mm
Material of roller:Cr12
Control system:Servo PLC touch screen
