Double roof panel machine

Product intruduction:

The structure is simple and the appearance of the machine is beautiful because

we adopt the shape-steel structure and most of the connectors are screws which

makes the machine flexible and stronger. All the components of the machine are

from brand-famous enterprises so they ensure the machine's normal function very

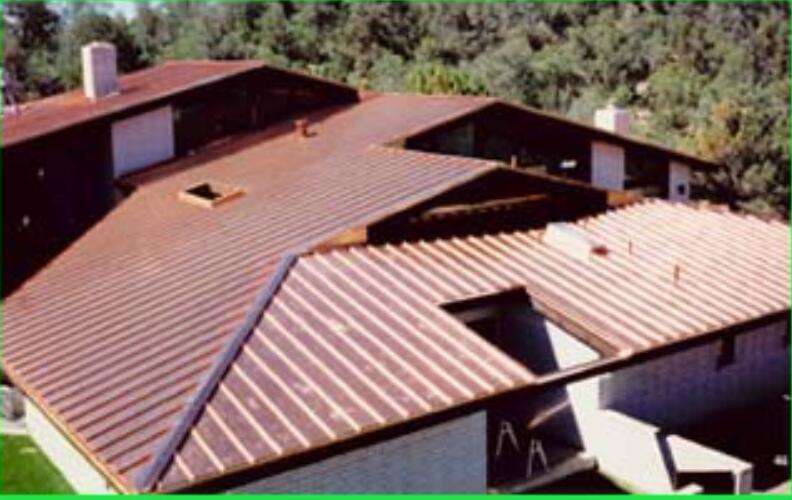

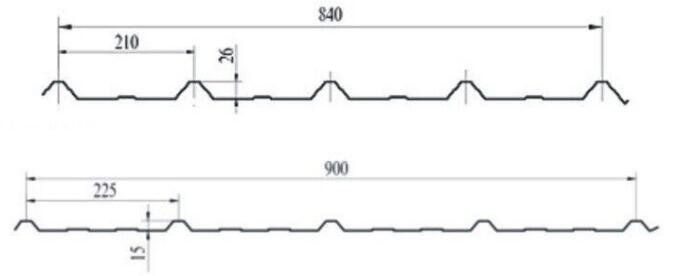

effectively. It makes different shapes of color steel roof sheet, which is used for

buildings, factories, supermarkets, etc. We adopt the automatic length-fixed forming

and cutting to guarantee the length is precise and the finished product clear without

deforming. It is very easy to install the equipment and suitable for production in the

factory. Low noise with high efficiency.

Technical parameters:

Main motor power:5.5KW
Hydraulic station motor: 2.2KW
Molding machine roller numbers:16R/15R
Linear velocity of molding machine:10m/min

Width of plank: 1000mm
Rolling thickness: 0.4-0.8mm
The external dimensions of the frame: 9m×1.3m×1.5m
The weight of molding machine: 10T
Moulding material scissors: Cr12
Inverter model: ABB
Computer PLC: Germany siemens ST200
