Double roof panel machine

Product intruduction:

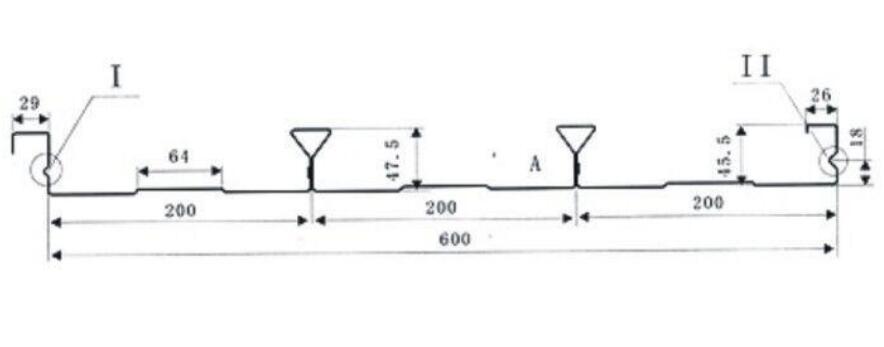

Closed type steel floor decking roll forming machine is a machine to make the floor

deck with clip lockup,The closed type steel floor decking extensively applied in light

steel frame factory buildings ,warehouses, public buildings because it is long service

life, convenient for mounting.There has six parts for the whole production line. They

are decoiler, roll forming machine, cutting parts, run-out table, hydraulic station,

electronic control system.

Technical parameters:

Main motor power:30KW
Hydraulic station motor:4.0KW
Molding machine roller numbers: 32R
Linear velocity of molding machine: 8m/min

Width of plank: 1000mm
Rolling thickness:0.8-1.2mm
The external dimensions of the frame:23mx1.4m×1.1m
The weight of molding machine: 24T
Molding material scissors: Cr12
Inverter model: ABB
Computer PLC: Germany Siemens ST200
